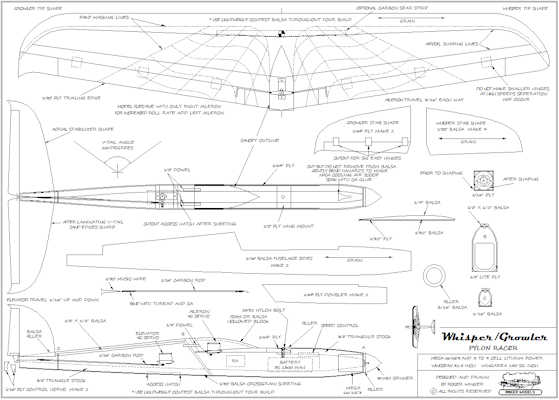

Unique model designs for modelers who still enjoy working with balsa wood. I have re-created my WingerModels plans page to showcase my designs. I had a website many years ago in the beginning of the electric flight era, maybe 2004-05 or so. Some of you may remember my Whisper design which was very popular at the time.
I wanted to post these plans so they werent locked away in my computer forever. I have built many of my designs but I can't build them all. I really like to draw, I find it relaxing and a challenge to make a workable plan. So here is my collection, posted for posterity sake. If you do build one of my designs, I'd love to see a picture of your modelling efforts. I'll add a builders gallery in the future.
These plans are a digital download in .PDF format. It should be quite easy to take the .PDf to your local print shop to get a plan printed on one page. Paper size has been set based on the plan size. If you want to tape the plan together using 8.5 x 11 paper you can also do that. It may not be easy to line up and maintain accuracy but it can be done.:)
When you go to the print shop, you are allowed to print off up to two copies if you want. Use one for parts and one for building off of. Good luck with your build and please don't upload, share these plans. Please help me protect my hard work. Thank you
Wingspan: 29.9" Wingarea 163 Sq in. Power: Mega 16/15/3 or equivalent and 3 to 4 cell Lithium
Wingspan: 30.4" Wingarea 150 Sq in. Power: Mega 16/15/3 or equivalent and 3 to 4 cell Lithium
Wingspan: 28" Wingarea 151 Sq in. Power: Mega 16/15/3 or equivalent and 3 to 4 cell Lithium
Wingspan: 28.4" Wingarea 154 Sq in. Power: Mega 16/15/3 or equivalent and 3 to 4 cell Lithium
Wingspan: 24.7" Wingarea 134 Sq in. Power: Mega 16/15/3 or equivalent and 3 to 4 cell Lithium
Wingspan: 30" Wingarea 173 Sq in. Power: Mega 16/15/3 or equivalent and 3 to 4 cell Lithium
Wingspan: 23.4" Wingarea 163 Sq in. Power: Mega 16/15/3 or equivalent and 3 to 4 cell Lithium
Wingspan: 40" Wingarea 150 Sq in. Power: Mega 16/15/3 or equivalent and 3 to 4 cell Lithium
Wingspan: 26.2" Wingarea 177 Sq in. Power: Mega 16/15/3 or equivalent and 3 to 4 cell Lithium
Wingspan: 23.3" Wingarea 163 Sq in. Power: Mega 16/15/3 or equivalent and 3 to 4 cell Lithium
Wingspan: 33.9" Wingarea 216 Sq in. Power: Mega 16/15/3 or equivalent and 3 to 4 cell Lithium

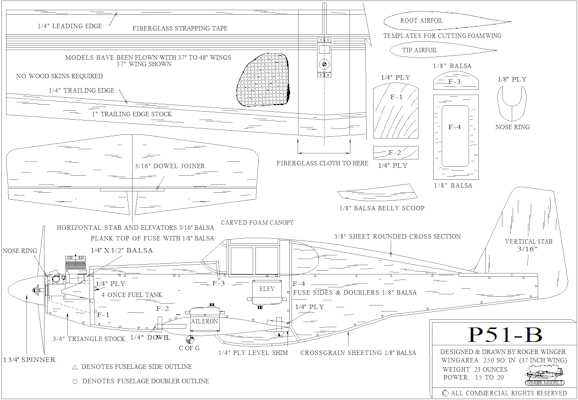

Wingspan: 35" Wingarea 350 Sq in. Power: Mega 16/15/5 or equivalent and 3 cell Lithium
Wingspan: 21" Wingarea 220 Sq in. Power: Mega 16/15/5 or equivalent and 3 cell Lithium

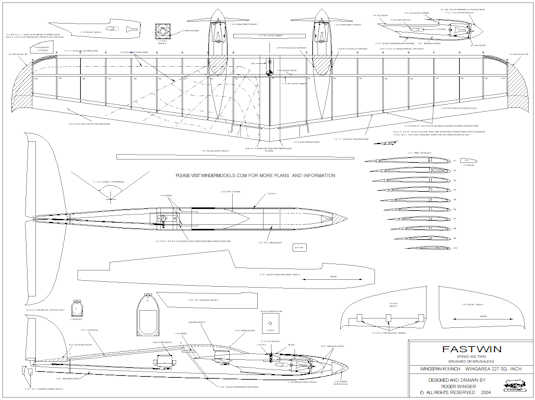

Wingspan: 42" Wingarea 227 Sq in. Power: Mega twin 16/15/3-5 or equivalent and 3 cell Lithium
Wingspan: 21.5" Wingarea 225 Sq in. Power: Speed 400 upto Mega 16/15/3-5 or equivalent and 3 cell Lithium
Wingspan: 32.5" Wingarea 150 Sq in. Power: Speed 400 upto Mega 16/15/3-5 or equivalent and 3 to 4 cell Lithium
Wingspan: 24.5" Wingarea 127 Sq in. Power: Rimfire 150-180 or equivilent and 2 cell Lithium
Wingspan: 27" 70MM EDF or Mega 16/15/5 pusher prop, I prefer the pusher version :) Wing plans included on second page. Visible on checkout.

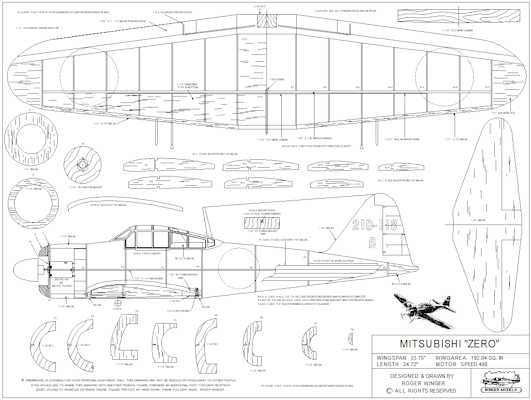

Wingspan: 33.75" Wingarea 192 Sq in. Power: Speed 400 upto Mega 16/15/-5 or equivalent and 3 cell Lithium
Wingspan: 87" Wingarea 1390 Sq in. Power: 60 size electric or equivalent
